Tension Weights

Enquiries & Information

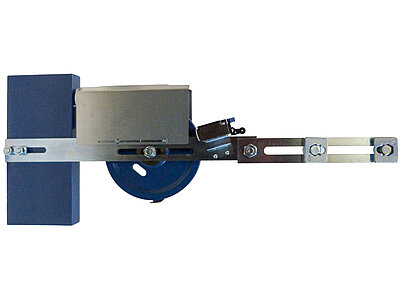

SRV

Application: Trip downwards direction
Weight: 15 kg
Mounting: Guiding rail
Tensile weight:
     Ø 200 mm = 40-75 kg
     Ø 300 mm = 40-60 kg

  • Pulley adjustable
  • Weight adjustable
  • Incl. slack wire switch
  • Incl. retainer
  • Incl. cover
  • 200 mm pulley, part number 60100006
  • 300 mm pulley, part number 60100009

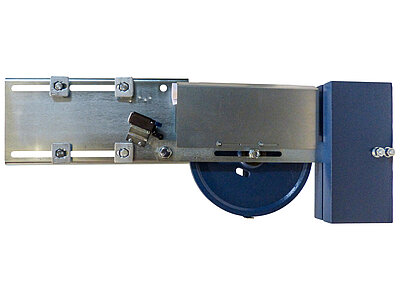

SR/FO-V

Application: Bi-directional tripping
Weight: 30 kg
Mounting: Guiding rail
Tensile weight:
     Ø 200 mm = 53-122 kg
     Ø 300 mm = 65-91 kg

  • Pulley adjustable
  • Weight adjustable
  • Incl. slack wire switch
  • Incl. retainer
  • Incl. cover
  • 200 mm pulley, part number 680162
  • 300 mm pulley, part number 680163

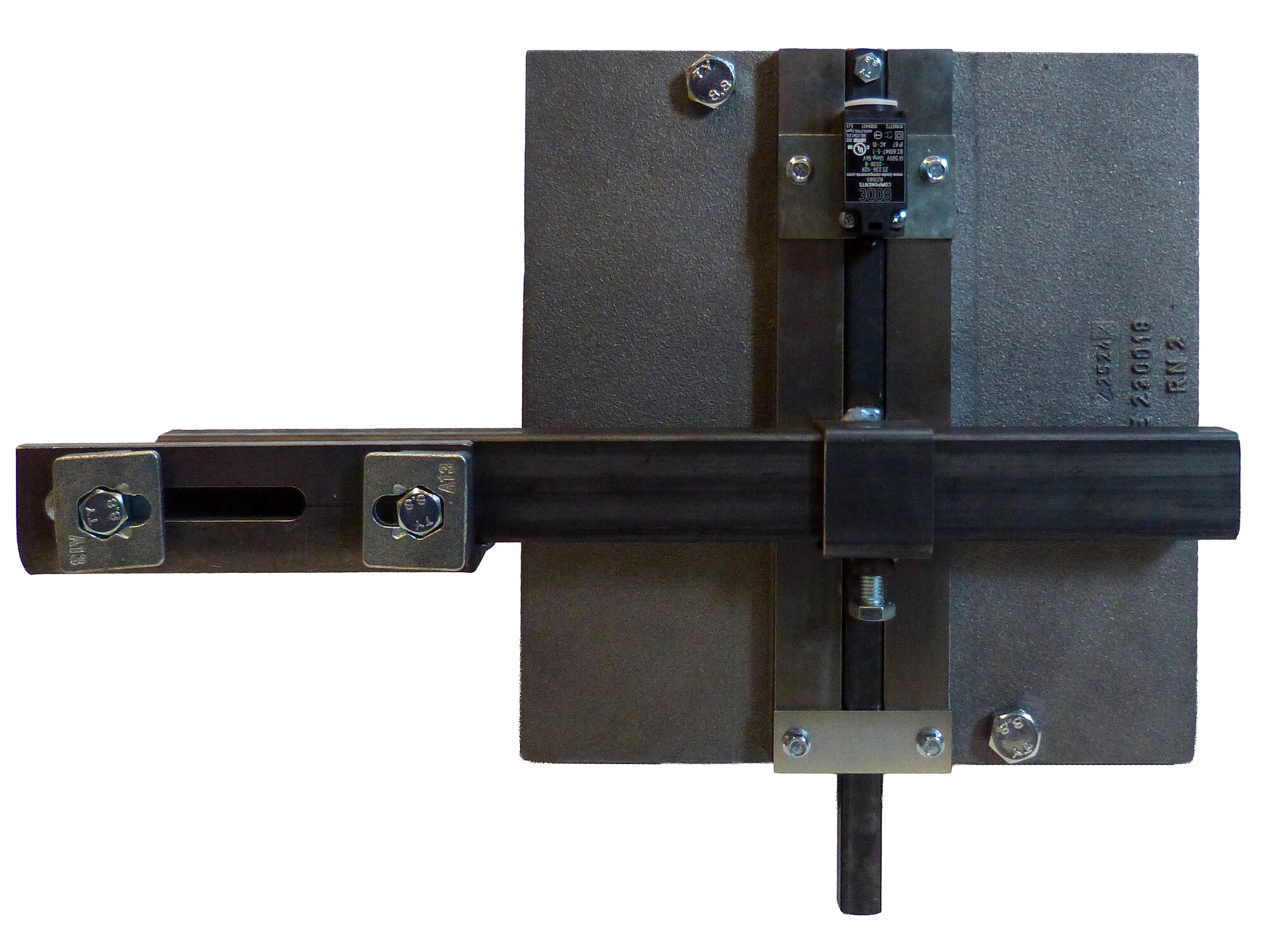

SGI-S

Application: Bi-directional tripping
Weight: 65 kg
Mounting: Guiding rail
Tensile weight: 65 kg

  • No cover and no retainer needed, due to integrated pulley
  • Incl. slack wire switch
  • 200 mm pulley, part number 60100018
  • 300 mm pulley, part number 60100020

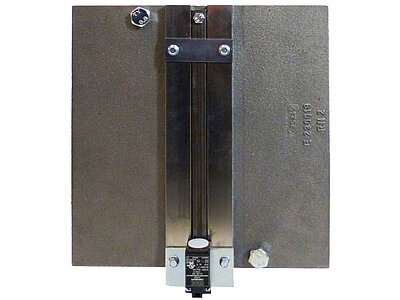

SGI

Application: Bi-directional tripping
Weight: 65 kg
Mounting: Guiding rail
Tensile weight: 65 kg

  • No cover and no retainer needed, due to intergrated pulley
  • Incl. slack wire switch
  • 200 mm pulley, part number 60100012
  • 300 mm pulley, part number 60100015

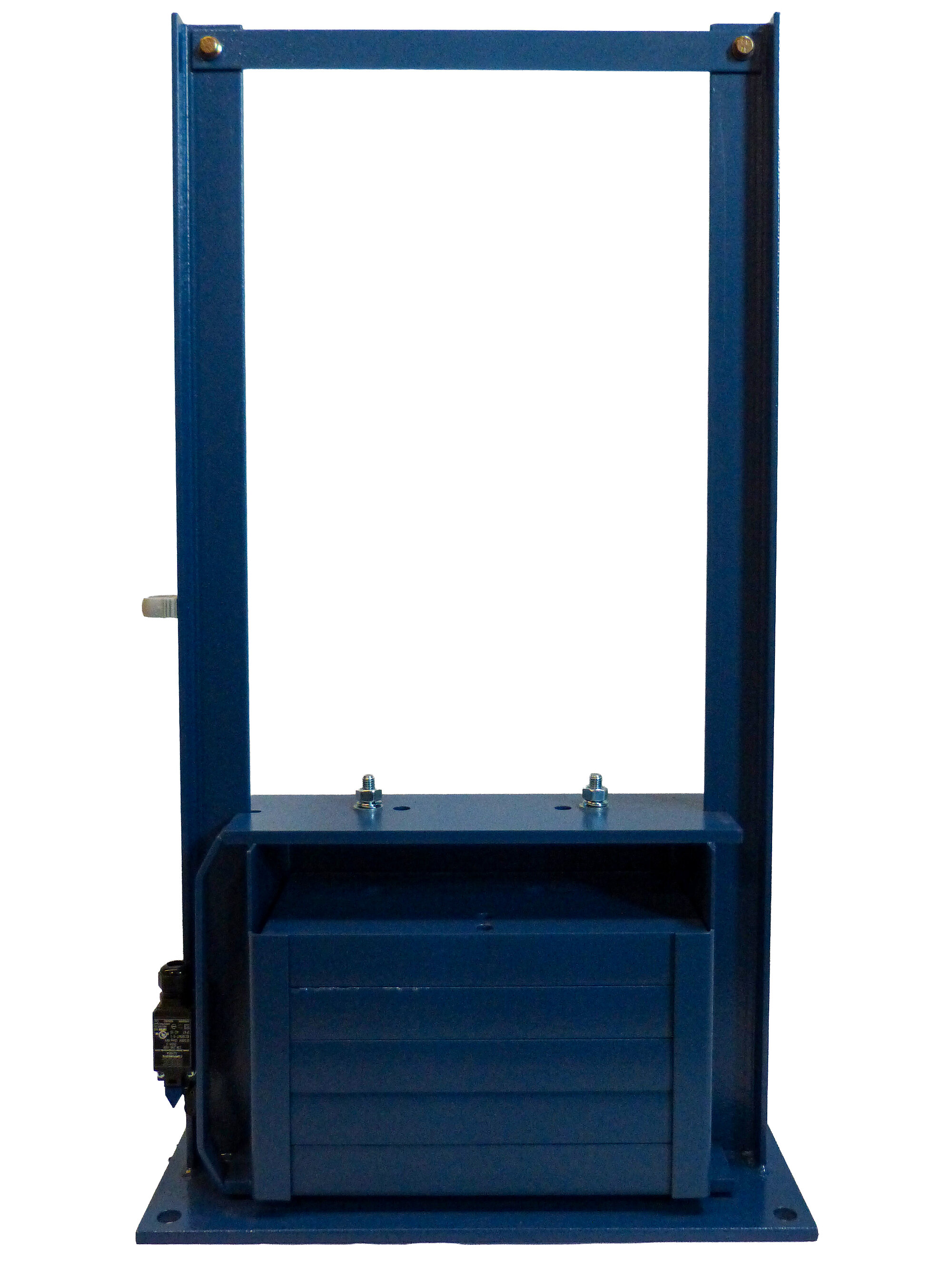

SGD

Application: Bi-directional tripping
Weight: 75 kg
Mounting: Shaft pit
Tensile weight: 75 kg

  • Overspeed governor or pulley are mounted on top of the SGD
  • Overspeed governor or pulley are to be ordered separately
  • Incl. slack wire switch
  • Part number 60100000
